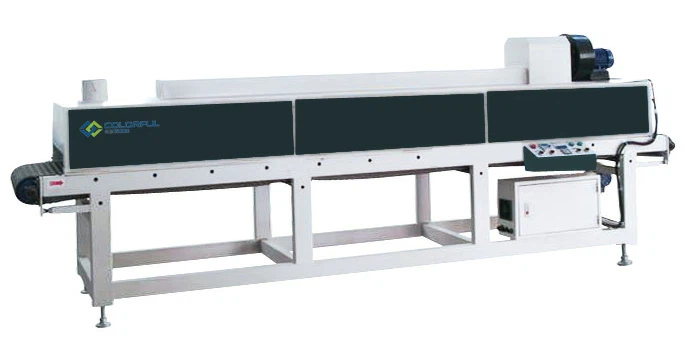

This Hot Air Drying Machine for UV Coating Line can achieve excellent defoaming and leveling effects in rolling laser wheel paint, water-based coloring, spray coating, and other production lines. It promotes the volatilization of solvents and moisture in the coating, further enhancing the drying speed and effect.
Specification
|
Working Width |
600#(mm) |
1000#(mm) |
1300#(mm) |
|
Working Thickness |
3-80 |
3-80 |
3-80 |
|
Minimum Working Length |
300 |
300 |
300 |
|
Feeding Speed |
5-20m/min |
5-20m/min |
5-20m/min |
|
Feeding Power |
1.5KW |
1.5KW |
1.5KW |
|
Machine Size |
10000×1000×1500 |
10000×1400×1500 |
10000×1700×1500 |
|
Working Height |
800-850 |
800-850 |
800-850 |
|
Total Power |
26.25KW |
38.25KW |
44.25KW |
Main functions and features of Hot Air Drying Machine for UV Coating Line
1. As a coating leveling anti-foaming drying effect, make the surface of the plate more flat.
2. The use of infrared heating principle to speed up the play of paint thinner and the reaction of paint, shorten the coating waiting for drying time.
3. The thick glass fiber protective layer is 50mm, which can keep the temperature without loss and reduce the power loss.
4. Temperature controller is provided to effectively control the starting and closing time of the heater to ensure that the temperature of the tunnel can meet the required drying requirements.
5. Use aluminum tube for conveying, conveying speed 5-20m/min.
6. The rack adopts 100mm x 50mm square pipe.
7. Transmission motor gear reduction motor, using Taiwan Shilin brand inverter.
8. IR far-infrared ceramic LAMP and IR LAMP are used for heating.
9. Centrifugal fan power is 0.75KW, heating and filtering device, using segmented single temperature control device.
10. Temperature control adopts independent control, which can accurately control the required temperature.
11. Temperature control can be adjusted from 0° to up to 100°
12. The side of the oven cover is opened to facilitate the disassembly and maintenance of the lamp.
13. All adopt Taiwan brand motor, conveying motor is 2HP, hot air circulation motor is 1HP.
14. The electrical appliances used meet the CE standard, and the electric control part is the French Schneider brand.
15. The frame is heat treated without deformation. The paint surface of the equipment is sprayed with powder, the surface is more bright, and it is not easy to corrosion and rust.
