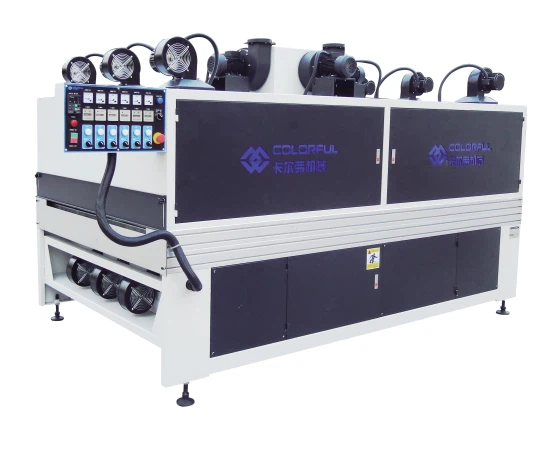

This Five Lamp UV Dryer for UV coating machine is designed for the drying of solid color primer, transparent retouching primer, transparent primer, top paint, etc. It is used for the instant curing of the primer film after UV primer line painting, production line, improve production efficiency and reduce manual operation. The first group sets gallium lamps to carry out targeted deep curing of solid color paint. Four sets of light source configuration can also be used for semi-dry or full-dry UV curing paint of various properties.
Specification
|
Working Width |
600#(mm) |
1000#(mm) |
1300#(mm) |
|
Working Thickness |
3-80 |
3-80 |
3-80 |
|
Minimum Working Length |
300 |
300 |
300 |
|
Feeding Speed |
0-20m/min |
0-20m/min |
0-20m/min |
|
Power Of Lamp |
5.6KW*5 |
8KW*5 |
12KW*5 |
|
Machine Size |
3000×1100×1900 |
3000×1500×1900 |
3300×1800×1900 |
|
Working Height |
800-850 |
800-850 |
800-850 |
|
Total Power |
33KW |
45KW |
64.5KW |
Main functions and features
1. The Five Lamp UV Dryer for UV coating machine chassis is split type design, full heat dissipation, box temperature is lower than the one.
2. The installed circuit is widely used for instant drying after the use of UV light curing coatings such as flat coating
3. The internal ventilation of the light box is good, effectively extending the service life of the UV lamp and electronic power supply
4. The side panel and the import and export light shield are equipped with anti-ultraviolet radiation partitions to effectively isolate the leakage of ultraviolet rays
5. The conveying device adopts a professional structure to extend the service life of the conveyor belt and ensure the bright surface of the painting parts
6. The transmission is carried by aluminum tube, ￠25*1370mm, the transmission motor is 1HP, and the Taiwan brand motor is used.
7. Independent exhaust fan, inlet diameter ￠150mm.
8. Aluminum plate 4mm composite, the side adopts air circulation filter design.
9. The front and rear cover can be turned over device, and the rear section is equipped with anti-leakage light iron flon sheet.
10. Anti-ultraviolet glass device in the side fluoroscope.
11. Install circuit protection system to effectively protect electronic components
12. Adopt Taiwan Shilin brand inverter
13. Each group of lights is independently controlled, and each group of lights can adjust the strong/weak light control according to the paint needs.
14. The electrical appliances used meet the CE standard, and the electric control part is the French Schneider brand.
15. The frame is heat treated without deformation. The paint surface of the equipment is sprayed with powder, the surface is more bright, and it is not easy to corrosion and rust.
